Frac Power.
Built for Extremes.

Advanced, low-emission natural gas frac units for today’s toughest jobs

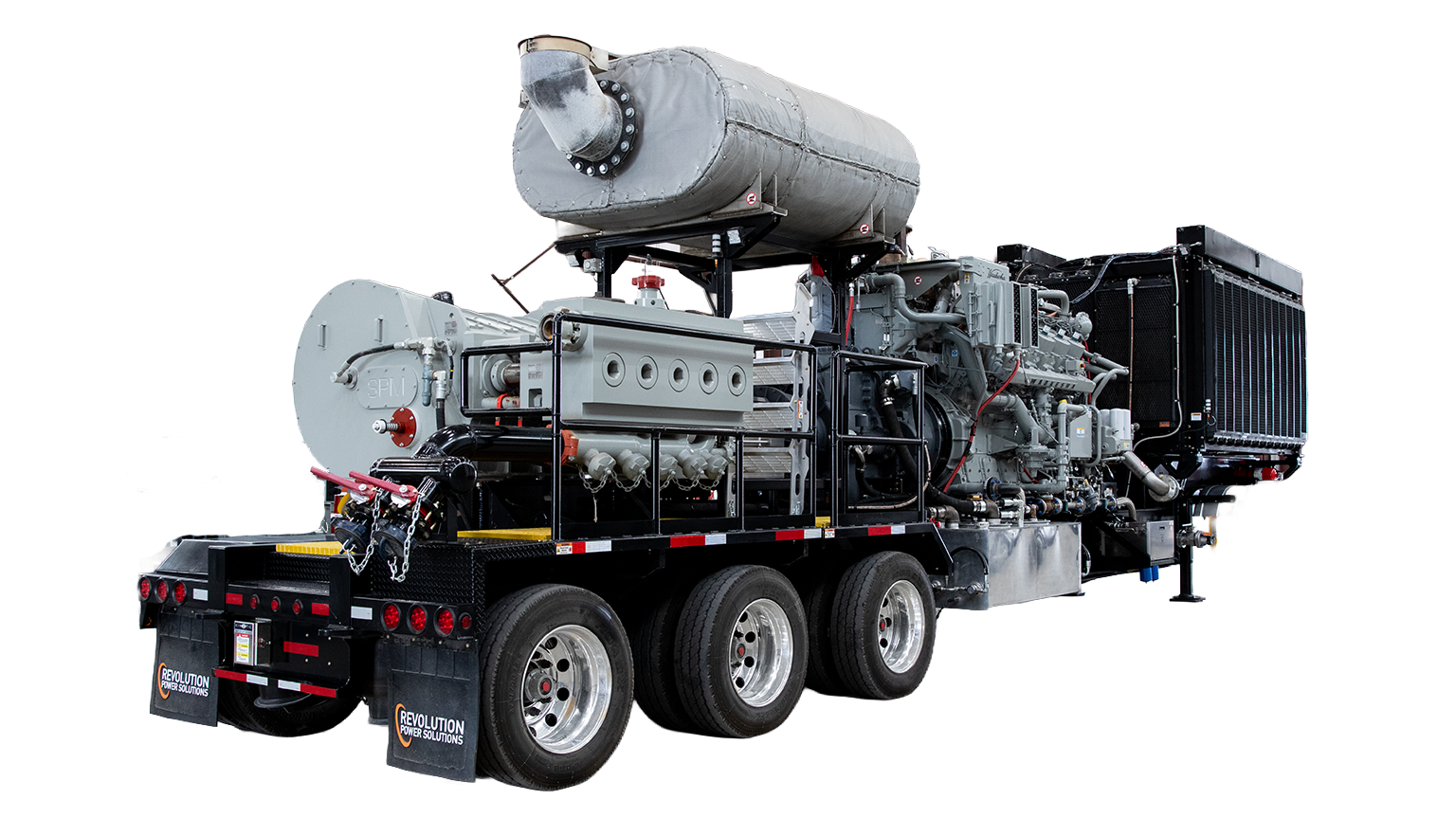

The Frac package is a robust, natural gas-powered solution engineered specifically for high-performance hydraulic fracturing. Featuring advanced controls, a heavy-duty trailer, and industry-leading components, it delivers reliable, efficient power for demanding frac operations—helping operators reduce emissions and fuel costs.

Frac Power Under Pressure

Frac solution

Technical Specifications

  • Prime Mover: Waukesha VHP Series Four, 12-cylinder, rich-burn natural gas engine
  • Power Output: 2,500 HP (1,575–2,000 HP range), flat torque curve from 900–1200 RPM
  • Heat Rate: 7,043 Btu/kWe-hr (~36% efficiency)
  • Power Factor: 0.8 PF, 3-phase
  • Dimensions: 47’ (L) × 8.5’ (W) × 13'-6" (H) (trailer); Engine: 147" (L) × 85" (W) × 98" (H)
  • Weight: 92,000 lbs (trailer, without tractor); Engine: 24,250 lbs
  • Trailer: Triple-axle, T-1 steel, DOT Approved, sealed modular electrical system, LED lighting, ABS brakes
  • Transmission: Twin Disc TA-7605, 9 forward speeds, max input 2,600 HP, max output torque 25,000 lb-ft
  • Pump: DH quintplex, max rod load 238,000 lbs, max pressure 15,000 psi
  • Hydraulics: PTO Driven Lube and Kidney Loop System, Front Drive Hydraulic Pumps

Key Features

  • Single-Trailer Utility Grade: Compact, mobile design for rapid deployment and easy relocation.
  • Multi-Fuel Capability: Operates on natural gas, field gas, pipeline gas, LNG, flare gas, CNG, and HD-5 propane.
  • Advanced Emissions Control: Rich Burn Engine Technology with 3-way catalyst achieves ultra-low NOx and methane emissions.
  • Remote Monitoring: Integrated LIVE Center for real-time operations and diagnostics.
  • Self-Sustained Auxiliaries: On-board 480V transformer and robust auxiliary systems for independent operation.
  • Enhanced Engine Controls: emPact Emission Control System, advanced misfire detection, and 3-D timing map for optimal performance

Power up your operations—anywhere, anytime, no compromises.

Engineered for speed, built for extremes. Our modular power systems deliver high performance and rock-solid reliability, even in the toughest environments. Scale up fast, stay ahead, and keep your mission moving—no matter what.

Get started
